Thermostatic calibrators

Slideshow

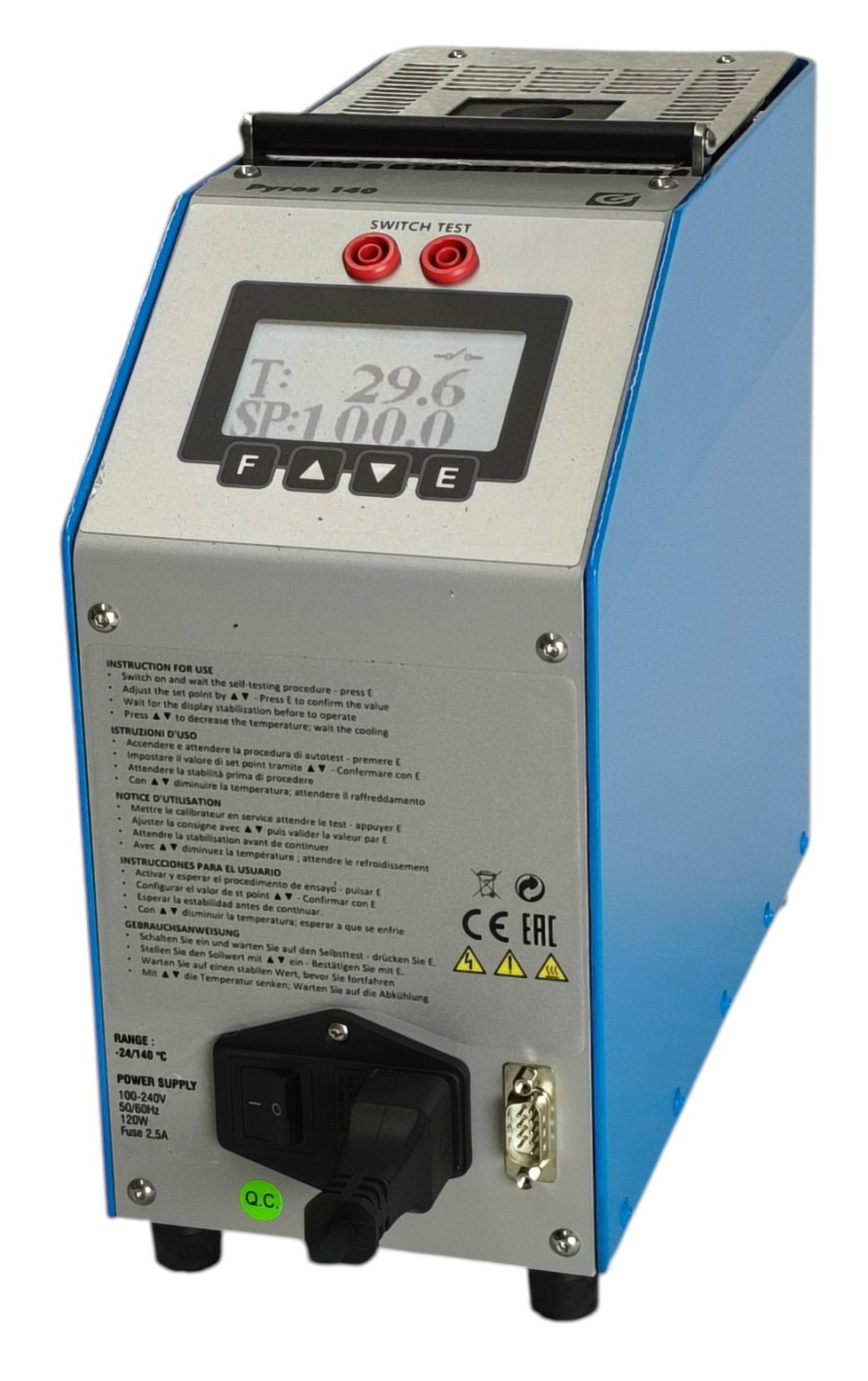

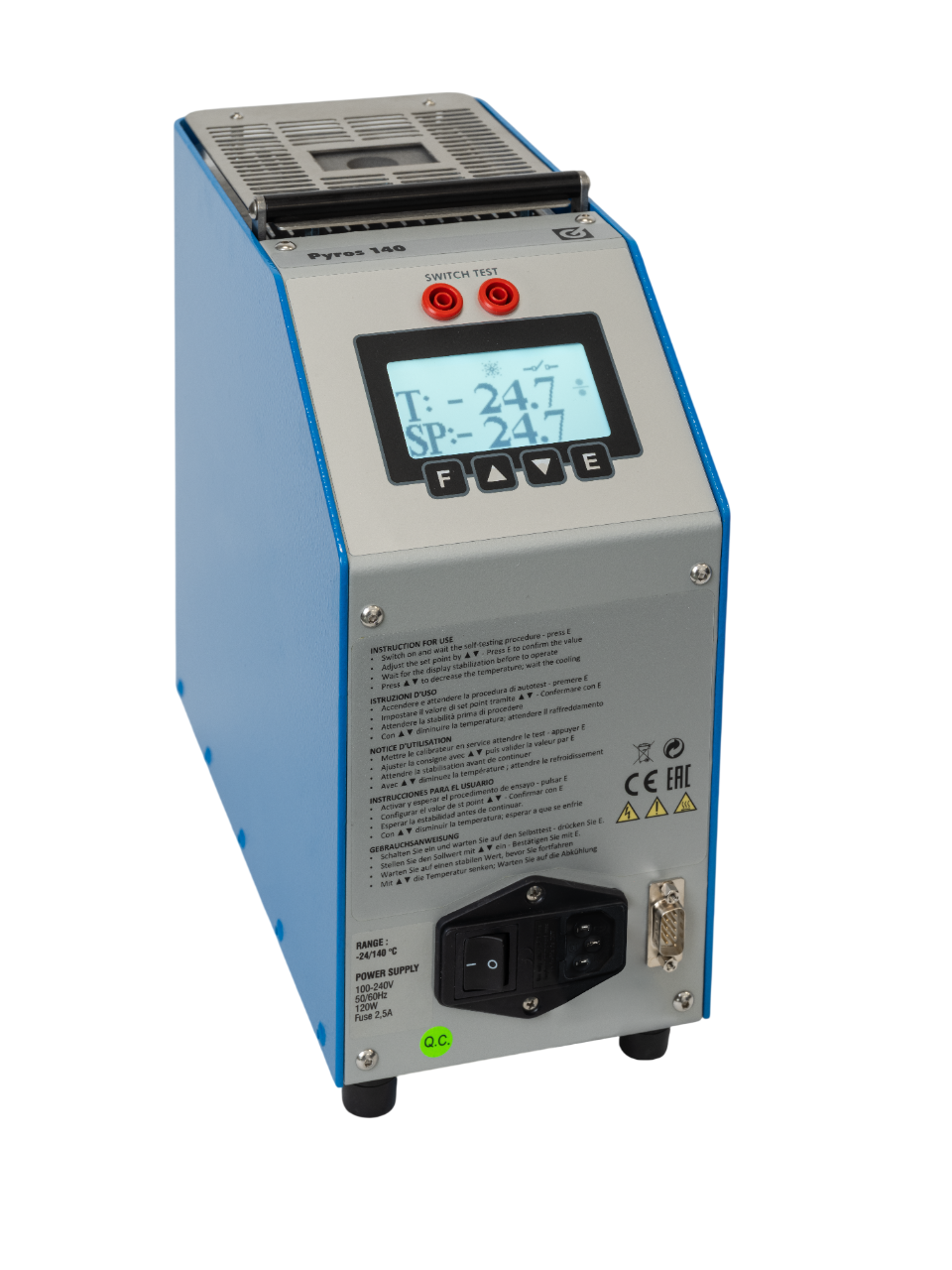

Pyros 140
  • Cod: PYROS 140
  • Temperature range: -26 °C ÷ 140 °C
  • Precision: ±0,25 °C
  • Hole depth: 98 mm
  • Hole diameter: 2x13 mm
Specifiche tecniche
PYROS 375
  • Cod: PYROS 375
  • Temperature range: 10 °C ÷ 375 °C
  • Precision: ±0,35 °C
  • Hole depth: 150 mm
  • Hole diameter: 26 mm
Specifiche tecniche

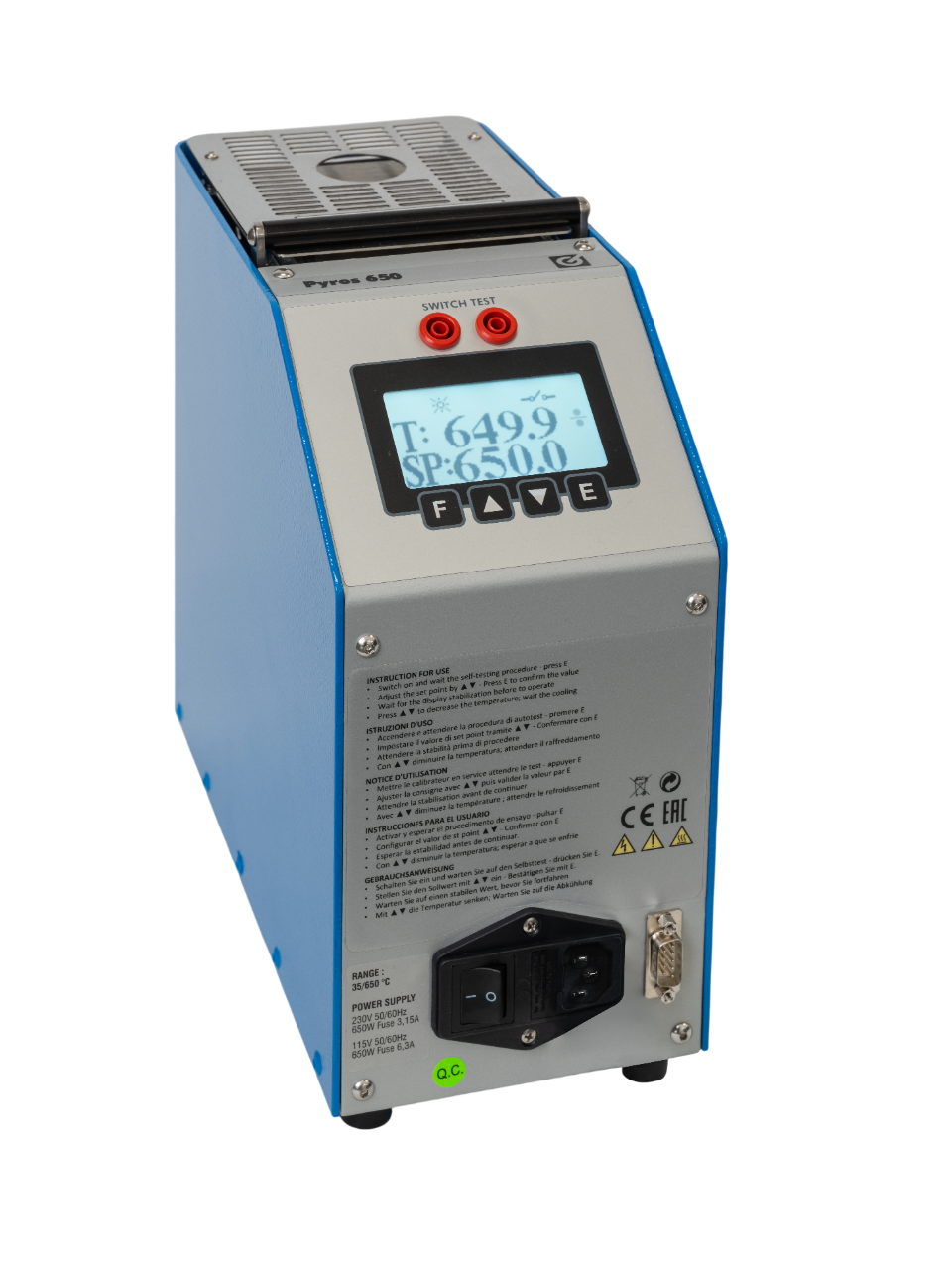

PYROS 650
  • Cod: PYROS 650
  • Temperature range: 15 °C ÷ 650 °C
  • Precision: ±0,50 °C
  • Hole depth: 150 mm
  • Hole diameter: 26 mm
Specifiche tecniche
FLUID 100-45
  • Cod: FLUID 100-45
  • Temperature range: -35°C ÷ 125 °C
  • Precision: ±0,15 °C
  • Hole depth: 150 mm
  • Hole diameter: 54 mm
Specifiche tecniche
FLUID 100/200
  • Cod: FLUID 100/200
  • Temperature range: -18 ÷ 250 °C
  • Precision: ±0,15 °C
  • Hole depth: 150 mm
  • Hole diameter: 54 mm
Specifiche tecniche
QUARTZ 50/633
  • Cod: QUARTZ 50/633
  • Temperature range: -50 °C ÷ 150 °C
  • Precision: ±0,15 °C
  • Hole depth: 130 mm
  • Hole diameter: 35 mm
Specifiche tecniche
PULSAR-35Cu
  • Cod: PULSAR-35Cu
  • Temperature range: Amb ÷ 600 °C
  • Precision: ±0,30 °C
  • Hole depth: 185 mm
  • Hole diameter: 35 mm
Specifiche tecniche
PULSAR 80CU
  • Cod: PULSAR 80CU
  • Temperature range: Amb ÷ 550 °C
  • Precision: ±0,30 °C
  • Hole depth: 275 mm
  • Hole diameter: 60 mm
Specifiche tecniche
SOLAR 1100/1200
  • Cod: SOLAR 1100/1200
  • Temperature range: 200 °C ÷ 1200 °C
  • Precision: ±3,00 °C
  • Hole depth: 220 mm
  • Hole diameter: 44 mm
Specifiche tecniche

corpo

Giussani makes a full range of portable dry thermostatic calibrators with an operating range of -30/+1100 °C and liquid ones with an operating range of -15/+240 °C

Portable calibrators have a quick response time and good accuracy and stability, which means that they can calibrate temperature sensors both in a lab and on the field in a short time.

Liquid calibrators consist of a cylindrical container of about 250 cc and thermally controlled with a magnetic stirring device. Liquid-based calibration ensures the best performance in terms of set evenness and heat transmission regardless of the shape and size of the sensors that need to be calibrated.

All models with greater accuracy can be fitted with auxiliary inputs to be able to read the various temperature sensors and be equipped with calibration softwares that automatize the calibration procedures and life tests on sensors and thermostats with an external computer.

figli_giussani_prod eng

Pyros 140
  • Cod: PYROS 140
  • Temperature range: -26 °C ÷ 140 °C
  • Precision: ±0,25 °C
  • Hole depth: 98 mm
  • Hole diameter: 2x13 mm
Technical specifications
PYROS 375
  • Cod: PYROS 375
  • Temperature range: 10 °C ÷ 375 °C
  • Precision: ±0,35 °C
  • Hole depth: 150 mm
  • Hole diameter: 26 mm
Technical specifications
PYROS 650
  • Cod: PYROS 650
  • Temperature range: 15 °C ÷ 650 °C
  • Precision: ±0,50 °C
  • Hole depth: 150 mm
  • Hole diameter: 26 mm
Technical specifications
FLUID 100-45
  • Cod: FLUID 100-45
  • Temperature range: -35°C ÷ 125 °C
  • Precision: ±0,15 °C
  • Hole depth: 150 mm
  • Hole diameter: 54 mm
Technical specifications
FLUID 100/200
  • Cod: FLUID 100/200
  • Temperature range: -18 ÷ 250 °C
  • Precision: ±0,15 °C
  • Hole depth: 150 mm
  • Hole diameter: 54 mm
Technical specifications
QUARTZ 50/633
  • Cod: QUARTZ 50/633
  • Temperature range: -50 °C ÷ 150 °C
  • Precision: ±0,15 °C
  • Hole depth: 130 mm
  • Hole diameter: 35 mm
Technical specifications
PULSAR-35Cu
  • Cod: PULSAR-35Cu
  • Temperature range: Amb ÷ 600 °C
  • Precision: ±0,30 °C
  • Hole depth: 185 mm
  • Hole diameter: 35 mm
Technical specifications
PULSAR 80CU
  • Cod: PULSAR 80CU
  • Temperature range: Amb ÷ 550 °C
  • Precision: ±0,30 °C
  • Hole depth: 275 mm
  • Hole diameter: 60 mm
Technical specifications
SOLAR 1100/1200
  • Cod: SOLAR 1100/1200
  • Temperature range: 200 °C ÷ 1200 °C
  • Precision: ±3,00 °C
  • Hole depth: 220 mm
  • Hole diameter: 44 mm
Technical specifications
